Stucuk
 Betreff des Beitrags: Doom 3 - MD5 Format (Version 10)
BeitragVerfasst: So Nov 21, 2004 22:57
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
iv struck a problem when trying to render MD5 files. If the models have vertex's that have more than one weight then the model isn't rendered correctly.

Code:
  1. Procedure BuildMD5Mesh(MD5 : TMD5File; Mesh : TMD5Mesh);
  2. var
  3. V,W : Integer;
  4. Pos,Joint : TVector3f;
  5. TM : TMatrix;
  6. Weighting : Single;
  7. begin
  8.
  9. // Build The Vertex's
  10. For V := 0 to Mesh.Header.NumVerts-1 do
  11. begin
  12. Mesh.Verts[v].Position := SetVector(0,0,0);
  13. Mesh.Verts[v].Colour := TColorToTVector3f(RGB(Random(256),Random(256),Random(256)));
  14.
  15. For W := 0 to Mesh.Verts[v].WeightCount -1 do
  16. begin
  17. Joint := MD5.Joints[Mesh.Weights[Mesh.Verts[v].WeightId + W].BoneId].Position;
  18. TM := MD5.Joints[Mesh.Weights[Mesh.Verts[v].WeightId + W].BoneId].Matrix;
  19. Weighting := Mesh.Weights[Mesh.Verts[v].WeightId + W].Factor;
  20.
  21. Pos := Mesh.Weights[Mesh.Verts[v].WeightId + W].Position;
  22. Pos := GetPosWithMatrix(Pos,TM);
  23. Pos := AddVector(Pos,Joint);
  24. Pos := ScaleVector(Pos,Weighting);
  25.
  26. Mesh.Verts[v].Position := AddVector(Mesh.Verts[v].Position,Pos);
  27.
  28. end;
  29. end;
  30.
  31.
  32. end;
  33.


Source Attached.


Dateianhänge:

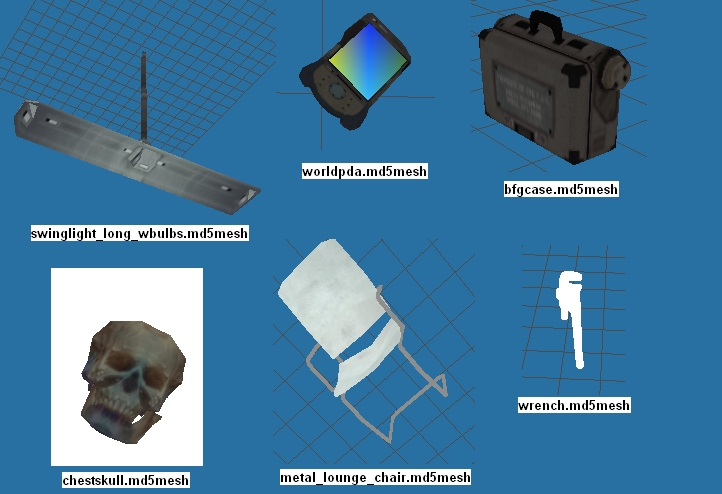

Dateikommentar: Player model - Loads of bones.
model_tex.jpg [ 59.45 KiB | 8106-mal betrachtet ]

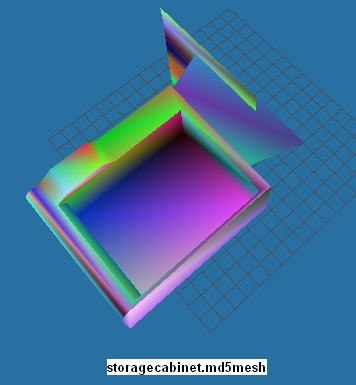

Dateikommentar: Light Fixture - 1 bone ( i think)
Light_model_tex.jpg [ 64.25 KiB | 8106-mal betrachtet ]
UnitMD5.zip [3.54 KiB]
332-mal heruntergeladen

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Mo Nov 22, 2004 09:13
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Code:
  1.
  2. Term := 1.0 - (Q.X*Q.X) - (Q.Y*Q.Y) - (Q.Z*Q.Z);
  3. if (term < 0) then
  4.    Q.W := 0
  5. else
  6.    Q.W := - sqrt(term);
  7.


Modifyed to

Code:
  1.
  2. Term := 1.0 - (Q.X*Q.X) - (Q.Y*Q.Y) - (Q.Z*Q.Z);
  3. if (term < 0) then
  4.    Q.W := 0
  5. else
  6.    Q.W := {-} sqrt(term);
  7.


Improves it. Still screwed with some models. Light fixture is the right way around now.

If im correct the probem lies in the quaternion. How its turned into a Matrix, how its applyed to the weight position..... somethign along them lines....... (Look at the storage picture in the screwed image and the one where the quaternion has been ignored, note: the quaternion is needed for alot of models)

Below is some models that seems to work fine (you will note they proberly have few vertex's that have more than one weight) and some models that are screwed(wasn't hard to find good examples of these).


Dateianhänge:

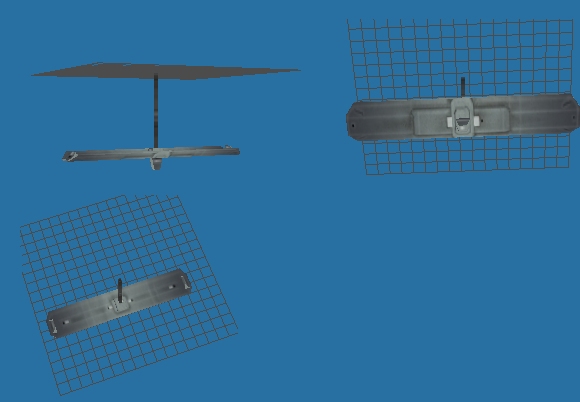

Dateikommentar: Models that look fine
working_model.jpg [ 141.14 KiB | 8097-mal betrachtet ]

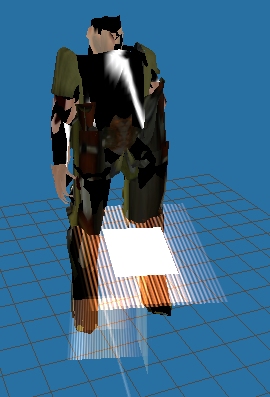

Dateikommentar: Models that are screwed.
notworking_model.jpg [133.7 KiB]
180-mal heruntergeladen

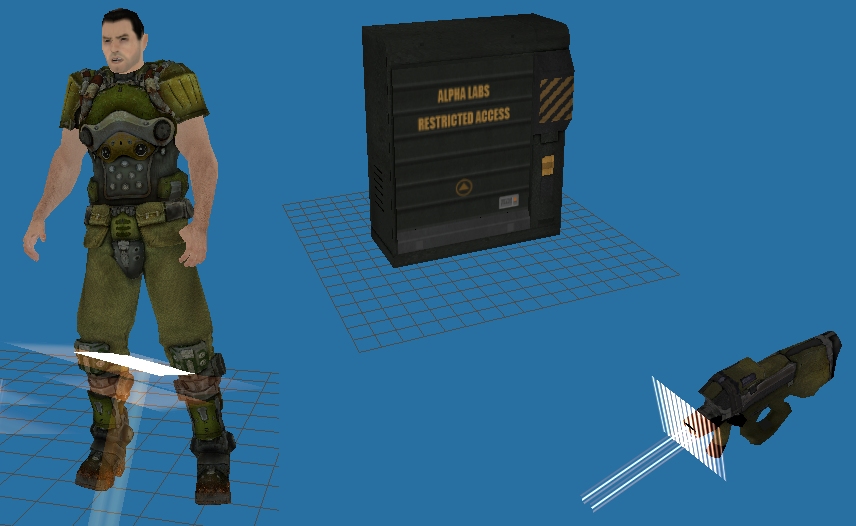

Dateikommentar: quaternion ignored for this test
hmm.jpg [ 57.28 KiB | 8097-mal betrachtet ]

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Di Nov 23, 2004 10:16
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Anyone used quaternion's b4?

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Sascha Willems
 Betreff des Beitrags:
BeitragVerfasst: Di Nov 23, 2004 12:37
Offline
DGL Member
Benutzeravatar

Registriert: Mo Sep 23, 2002 19:27
Beiträge: 5812
Programmiersprache: C++
I have used quaternions, and I also wrote a simple MD5-Loader. But the loader I wrote was for that leaked E3-Alpha of D3, and the fileformat back then was different than the current one, so I can't help you much on the file format. But this is how I convert a quaternion to a matrix :
Code:
  1. function QuaternionToMatrix(pQ : TQuaternion) : TMatrix;
  2. begin
  3. with pQ do
  4.  begin
  5.  Result[0,0] := 1 - 2*y*y - 2*z*z;
  6.  Result[1,0] := 2*x*y - 2*w*z;
  7.  Result[2,0] := 2*x*z + 2*w*y;
  8.  Result[3,0] := 0;
  9.
  10.  Result[0,1] := 2*x*y + 2*w*z;
  11.  Result[1,1] := 1 - 2*x*x - 2*z*z;
  12.  Result[2,1] := 2*y*z - 2*w*x;
  13.  Result[3,1] := 0;
  14.
  15.  Result[0,2] := 2*x*z - 2*w*y;
  16.  Result[1,2] := 2*y*z + 2*w*x;
  17.  Result[2,2] := 1 - 2*x*x - 2*y*y;
  18.  Result[3,2] := 0;
  19.
  20.  Result[0,3] := 0;
  21.  Result[1,3] := 0;
  22.  Result[2,3] := 0;
  23.  Result[3,3] := 1;
  24.  end;
  25. end;

Maybe it's of help to you.

_________________
www.SaschaWillems.de | GitHub | Twitter | GPU Datenbanken (Vulkan, GL, GLES)
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Fr Nov 26, 2004 16:05
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Thanks, worked like a charm :). On a side note, how hard would it to be to generate all the data nessisary to be able to bumpmap the models (when u only have the vertex information to go on).


Dateianhänge:

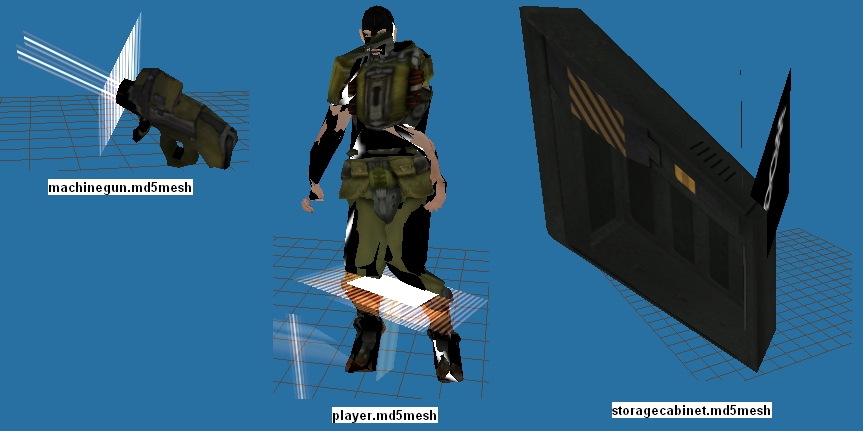

Dateikommentar: Now works :)
workingnow_models.jpg [158.44 KiB]
144-mal heruntergeladen

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Sascha Willems
 Betreff des Beitrags:
BeitragVerfasst: Fr Nov 26, 2004 17:31
Offline
DGL Member
Benutzeravatar

Registriert: Mo Sep 23, 2002 19:27
Beiträge: 5812
Programmiersprache: C++
It's not to hard to get the basic things needed for bumpmapping : You need the S-Tangent and the T-Tangent for doing bumpmapping, both are derived from the texture coordinates. Take a look at this tutorial, where all those things are described and at the end you'll also have code on how to calculate those values for more complex objects.

_________________
www.SaschaWillems.de | GitHub | Twitter | GPU Datenbanken (Vulkan, GL, GLES)
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Sa Nov 27, 2004 00:31
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
The problem is how to work out sTangent and tTangent(Since there 3d coords not 2d) when its not a torus but random vertex's which could form any shape. Once you can work out them values it doesn't seem that hard to do.

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Magellan
 Betreff des Beitrags:
BeitragVerfasst: Sa Nov 27, 2004 11:02
Offline
DGL Member
Benutzeravatar

Registriert: Di Nov 26, 2002 22:12
Beiträge: 259
Wohnort: Dresden
Try out this page: http://www.terathon.com/index.html
There you'll find an algorithm to calculate the tangent space vectors of an arbitrary mesh, which works very well.

_________________
Nichts auf der Welt ist so gerecht verteilt wie der Verstand. Denn jederman ist überzeugt, dass er genug davon habe.
Rene Descartes, frz. Mathematiker u. Philosoph, 1596-1650
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Sa Nov 27, 2004 20:33
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
All i can see on that site is images and a form to buy a licence of there engine...

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Sascha Willems
 Betreff des Beitrags:
BeitragVerfasst: Sa Nov 27, 2004 20:53
Offline
DGL Member
Benutzeravatar

Registriert: Mo Sep 23, 2002 19:27
Beiträge: 5812
Programmiersprache: C++
http://www.terathon.com/code/tangent.html. But note that this code will not always give you proper tangents. Finding tangents for complex meshes (if you want to do it right, but most of the times users won't notice small errors) is kind of hard and there are many ways to do it, I tried at least three ways and they didn't give proper results under some circumstances, but most of the times they worked (I also used the linked version).

_________________
www.SaschaWillems.de | GitHub | Twitter | GPU Datenbanken (Vulkan, GL, GLES)
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: So Nov 28, 2004 17:03
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Code:
  1. Vector3D sdir((t2 * x1 - t1 * x2) * r, (t2 * y1 - t1 * y2) * r,
  2.                 (t2 * z1 - t1 * z2) * r);
  3.         Vector3D tdir((s1 * x2 - s2 * x1) * r, (s1 * y2 - s2 * y1) * r,
  4.                 (s1 * z2 - s2 * z1) * r);


Shouldn't sdir be tdir and visa versa?

Code:
  1. long count = vertexCount;
  2.     for (long a = 0; a < count; a++)
  3.     {
  4.         const Vector3D& n = normal[a];
  5.         const Vector3D& t = tan1[a];
  6.
  7.         // Gram-Schmidt orthogonalize
  8.         tangent[a] = (t - n * (n * t)).Normalize();
  9.
  10.         // Calculate handedness
  11.         tangent[a].w = (n % t * tan2[a] < 0.0F) ? -1.0F : 1.0F;
  12.     }


Don't u need a sTangent and a tTangent? rather than a 4d vertex?

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
LarsMiddendorf
 Betreff des Beitrags:
BeitragVerfasst: So Nov 28, 2004 17:10
Offline
DGL Member
Benutzeravatar

Registriert: Sa Dez 28, 2002 11:13
Beiträge: 2244
Instead of storing two tangent vectors you can store only one and the normal vector. The second tangent vector can be calculated in the vertex program, because it is orthogonal to the first tangent and the normal. The only problem is, that there are the two cases where the ttangent is orthogonal two the stangent and normal: ttangent = stangent x normal and ttangent = normal x stangent=- stangent x normal. So you have to store a fourth value.
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: So Nov 28, 2004 21:45
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Is Tan1 and Tan2, sTangent and tTangent? If so the following should be correct:

Code:
  1.
  2. Procedure BuildMD5Tangents(var Mesh : TMD5Mesh);
  3. var
  4. x,v1,v2,v3  : Integer;
  5. x1,x2,y1,y2,z1,z2,
  6. s1,s2,t1,t2,
  7. r : Single;
  8. sdir,tdir : TVector3f;
  9. begin
  10.
  11. for x := 0 to Mesh.Header.NumTris-1 do
  12. begin
  13. v1 := Mesh.Tris[x].V1;
  14. v2 := Mesh.Tris[x].V2;
  15. v3 := Mesh.Tris[x].V3;
  16.
  17. x1 := Mesh.Verts[v2].Position.X - Mesh.Verts[v1].Position.X;
  18. x2 := Mesh.Verts[v3].Position.X - Mesh.Verts[v1].Position.X;
  19. y1 := Mesh.Verts[v2].Position.Y - Mesh.Verts[v1].Position.Y;
  20. y2 := Mesh.Verts[v3].Position.Y - Mesh.Verts[v1].Position.Y;
  21. z1 := Mesh.Verts[v2].Position.Z - Mesh.Verts[v1].Position.Z;
  22. z2 := Mesh.Verts[v3].Position.Z - Mesh.Verts[v1].Position.Z;
  23.
  24. s1 := Mesh.Verts[v2].s - Mesh.Verts[v1].s;
  25. s2 := Mesh.Verts[v3].s - Mesh.Verts[v1].s;
  26. t1 := Mesh.Verts[v2].t - Mesh.Verts[v1].t;
  27. t2 := Mesh.Verts[v3].t - Mesh.Verts[v1].t;
  28.
  29. r := 1 / (s1 * t2 - s2 * t1);
  30.
  31. sdir := SetVector((s1 * x2 - s2 * x1) * r, (s1 * y2 - s2 * y1) * r,(s1 * z2 - s2 * z1) * r);
  32. tdir := SetVector((t2 * x1 - t1 * x2) * r, (t2 * y1 - t1 * y2) * r,(t2 * z1 - t1 * z2) * r);
  33.
  34. Mesh.Verts[v1].sTangent := AddVector(Mesh.Verts[v1].sTangent,sdir);
  35. Mesh.Verts[v1].tTangent := AddVector(Mesh.Verts[v1].tTangent,tdir);
  36. Mesh.Verts[v2].sTangent := AddVector(Mesh.Verts[v2].sTangent,sdir);
  37. Mesh.Verts[v2].tTangent := AddVector(Mesh.Verts[v2].tTangent,tdir);
  38. Mesh.Verts[v3].sTangent := AddVector(Mesh.Verts[v3].sTangent,sdir);
  39. Mesh.Verts[v3].tTangent := AddVector(Mesh.Verts[v3].tTangent,tdir);
  40. end;
  41.
  42. end;
  43.


EDIT:

Render Code(Modifyed Bumpmap v2 demo code):
Code:
  1.
  2. If Shader.BumpMapID > 0 then
  3. begin
  4.
  5. glBindProgramARB(GL_VERTEX_PROGRAM_ARB, BumpVP);
  6. glEnable(GL_VERTEX_PROGRAM_ARB);
  7. glProgramLocalParameter4fARB(GL_VERTEX_PROGRAM_ARB, 0, 0,0,0,0);
  8. glProgramLocalParameter4fARB(GL_VERTEX_PROGRAM_ARB, 1, 0,10,10,0);
  9.
  10. glBindProgramARB(GL_FRAGMENT_PROGRAM_ARB, BumpFP);
  11. glEnable(GL_FRAGMENT_PROGRAM_ARB);
  12. glProgramLocalParameter4fARB(GL_FRAGMENT_PROGRAM_ARB, 0, 1/50,1/50,1/50,1/50); // invRadius
  13. glProgramLocalParameter4fARB(GL_FRAGMENT_PROGRAM_ARB, 1, 0,0,0,0);    // ambient
  14.
  15. // Bind base map to texture unit 0
  16. glActiveTexture(GL_TEXTURE0);
  17. glBindTexture(GL_TEXTURE_2D, Shader.DiffuseMapID);
  18. glEnable(GL_TEXTURE_2D);
  19. // Bind normal map to texture unit 1
  20. glActiveTexture(GL_TEXTURE1);
  21. glBindTexture(GL_TEXTURE_2D, Shader.BumpMapID);
  22. glEnable(GL_TEXTURE_2D);
  23. // Bind specular map to texture unit 2
  24. glActiveTexture(GL_TEXTURE2);
  25.
  26. glBindTexture(GL_TEXTURE_2D, Shader.SpecularMapID);
  27. glEnable(GL_TEXTURE_2D);
  28.
  29. glClientActiveTexture(GL_TEXTURE0);
  30.
  31.       glDisable(GL_CULL_FACE);
  32.       glBegin(GL_TRIANGLES);
  33.       For v := 0 to Vertex_No-1 do
  34.       begin
  35.       glActiveTexture(GL_TEXTURE0);
  36.       glTexCoord2f(Vertexs[v].TextureCoord.X,Vertexs[v].TextureCoord.Y);
  37.       glActiveTexture(GL_TEXTURE1);
  38.       SpaceLight := GetSpaceLight(SetVector(0,0,0),sTan[v],tTan[v],Vertexs[v].Normal);
  39.       glTexCoord3f(SpaceLight.X,SpaceLight.Y,SpaceLight.Z);
  40.       glVertex3f(Vertexs[v].Position.X,Vertexs[v].Position.Y,Vertexs[v].Position.Z);
  41.       end;
  42.       glend;
  43.
  44. // Disable textures
  45. glActiveTexture(GL_TEXTURE1);
  46. glDisable(GL_TEXTURE_2D);
  47. glActiveTexture(GL_TEXTURE2);
  48. glDisable(GL_TEXTURE_2D);
  49. glActiveTexture(GL_TEXTURE0);
  50. //glDisable(GL_TEXTURE_2D);
  51.
  52. glDisable(GL_VERTEX_PROGRAM_ARB);
  53. glDisable(GL_FRAGMENT_PROGRAM_ARB);
  54. exit;
  55. end;
  56.


Code:
  1.
  2. Function GetSpaceLight(Light,sTan,tTan,Normal : TVector3f) : TVector3f;
  3. begin
  4. Result.X := DotProduct(sTan,light);
  5. Result.Y := DotProduct(tTan,light);
  6. Result.Z := DotProduct(Normal,light);
  7. end;
  8.


Models are just black....

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Magellan
 Betreff des Beitrags:
BeitragVerfasst: So Nov 28, 2004 22:29
Offline
DGL Member
Benutzeravatar

Registriert: Di Nov 26, 2002 22:12
Beiträge: 259
Wohnort: Dresden
Zitat:
The code generates a four-component tangent in which the handedness of the local coordinate system is stored as ±1 in the w-coordinate. The bitangent vector B is then given by B = (N × T)Tw.

_________________
Nichts auf der Welt ist so gerecht verteilt wie der Verstand. Denn jederman ist überzeugt, dass er genug davon habe.
Rene Descartes, frz. Mathematiker u. Philosoph, 1596-1650
Nach oben
 Profil
Mit Zitat antworten
Stucuk
 Betreff des Beitrags:
BeitragVerfasst: Mo Nov 29, 2004 00:16
Offline
DGL Member
Benutzeravatar

Registriert: Mi Jul 21, 2004 22:39
Beiträge: 360
Wohnort: UK, Scotland
Clueless. 4D tangent doesn't help, since i know nothing on vertex/fragment programs.

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
Nach oben
 Profil
Mit Zitat antworten
Beiträge der letzten Zeit anzeigen:  Sortiere nach
Ein neues Thema erstellen Auf das Thema antworten  Seite 1 von 2
  [ 18 Beiträge ]  Gehe zu Seite 1, 2  Nächste
Foren-Übersicht » English » English Programming Forum


Wer ist online?

Mitglieder in diesem Forum: 0 Mitglieder und 9 Gäste

Du darfst keine neuen Themen in diesem Forum erstellen.
Du darfst keine Antworten zu Themen in diesem Forum erstellen.
Du darfst deine Beiträge in diesem Forum nicht ändern.
Du darfst deine Beiträge in diesem Forum nicht löschen.
Du darfst keine Dateianhänge in diesem Forum erstellen.

Suche nach:
Gehe zu:
cron
  Powered by phpBB® Forum Software © phpBB Group
Deutsche Übersetzung durch phpBB.de
[ Time : 0.076s | 19 Queries | GZIP : On ]
