My demo has some keys to visualize the tangents. Just compare my tangents to your tangents and maybe you see what's wrong.

_________________
www.SaschaWillems.de | GitHub | Twitter | GPU Datenbanken (Vulkan, GL, GLES)

So I’ll try to explain it step by step:


Your’re looking for the sTangent and the tTangent.
N is the normal of your vertex. It’s very easy to calculate N, because you know every vertex of your mesh.
N=(Polygon[0] - Polygon[1]) x (Polygon[1], Polygon[2]);
N=VectorNormalize(N);
Polygon is a List of Vertices, which form your current meshface.
Now you know the normals of your meshfaces. To calculate the normals per vertex you have to add all facenormals of these faces, which share the same vertices. Then you have to normalize your resulting normal again.

Then you walk through the code presented at http://www.terathon.com/code/tangent.html and you get the resulting 4D-Vector T.

The first three components of T are the components of your tangent you are looking for. The last component of the 4D-Vector lets you know if you’ve to invert the bitangent.
The bitangent itself (the other tangent you're looking for) is given by the crossproduct of your normal and the tangent at the same vertex.

_________________
Nichts auf der Welt ist so gerecht verteilt wie der Verstand. Denn jederman ist überzeugt, dass er genug davon habe.
Rene Descartes, frz. Mathematiker u. Philosoph, 1596-1650

But with no knowlage on vertex or fragment programs, i can't make or modify the bumpmap v2 demo ones to handle a 4d tangnet insted of 2 3d ones.

If you make it so the model is in the center (0,0,0) would't you just need to normalize the vertex positions? Since they would then form a sphere around 0,0,0.

EDIT:

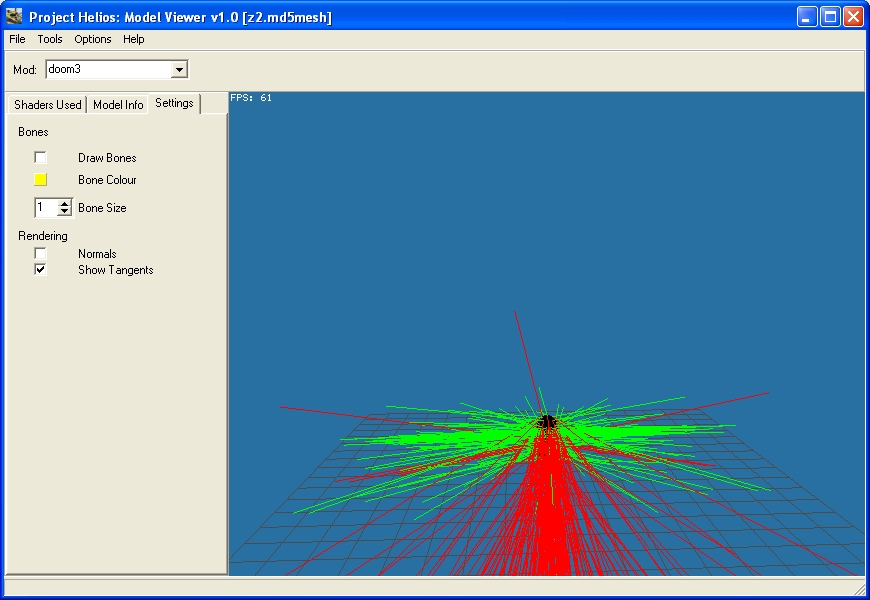

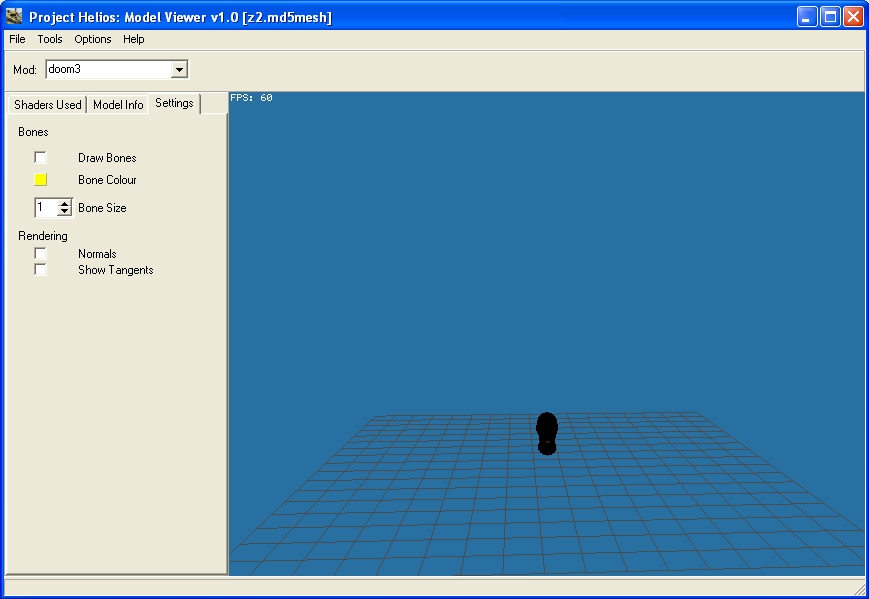

Images attached. Looks wrong...

Red = sTangent
Green = tTangent

_________________
Free Map Editor - Game Requirements - Stucuk.Net
-Stu
